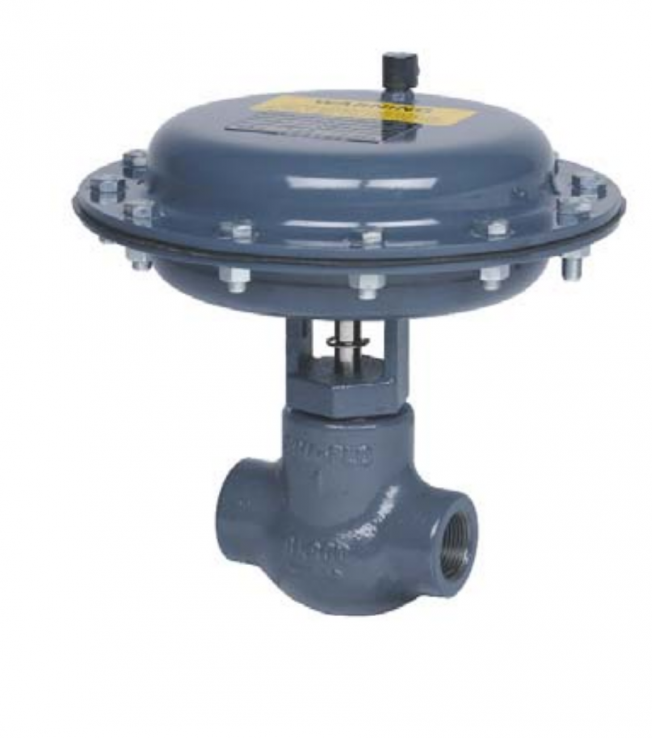

DF100 Control Valve

The Model DF100 control valve is an improvement over its predecessor the DF1; still designed for quick open flow applications, DF100’s are identical in function to the DF1. These tough, compact valves are ideal for use in oil and gas separators, treaters, and scrubbers or as dump valves. The DF100 is well suited for many other high pressure fluid applications up to 2250 Psig (15,513 kPag). Available in 1” globe or “T” body designs.



Features :
  • Live loaded packing.
  • Field-reversible from spring-to-close to spring-to-open.
  • Standard NACE construction.
  • Flow up or down (flow down recommended).
  • Simple installation and easy maintenance.
  • Design suitable for applications to -50OF (-45 Degree Celsius).
  • Threaded bonnet.
Available Port Diameters: 1/4” | 3/8” | 1/2” | 3/4” Available Body Styles: Globe & “T” Body Available End Connections: FNPT / RF / RTJ Rating: ASME B16.34 Class 150 / 300 / 600 / 900 FNPT: CWP 2,250 Psi (15,513 kPa)
